High speed punching machine shock absorber, punching machine shock absorber, air cushion, shock absorption effect up to 90%

Product Features

Pneumatic anti vibration device, in accordance with JISD-4101 air cushion pressure test standard

The natural frequency is 3Hz~5Hz, and the maximum operating pressure is 4.5 Kg/cm ^ 2.

The body adopts multi-layer anti rust baking paint.

The body adopts Neoprene Rubber, which has excellent airtightness through integrated molding.

The anti vibration effect is extremely high, and the efficiency of general equipment can reach over 97%.

The load range is 50-3500Kg.

An oil cap can be installed to prevent general oil contamination and corrosion.

Applicable equipment: hydraulic press, hydraulic press, high-speed press, hydraulic cutting machine, textile machine, needle machine, high-speed sewing machine, and all other equipment that generates vibration can be used

Air cushion shock absorbers effectively isolate the vibration generated during the operation of equipment, transmit it to the ground, and also isolate the impact of external vibration on precision equipment. The shock absorption effect can reach over 95%, and vibration equipment placed on high floors is also suitable. Product features: 1. Air pressure type anti vibration device, designed with oil pressure damping cylinder, 2. Effectively suppresses excessive amplitude of equipment, ensuring equipment stability. 3. Suitable for eliminating impact vibration, low natural frequency value design, excellent anti vibration effect. 4. Use Neoprene Rubber material, with good weather resistance and long service life. 5. Use a robot to weld the air cushion shell, and the rubber and shell are formed as a whole. 6. Good air tightness, avoiding frequent inflation and maintenance, making it easier to use. 7. Oil resistant cap design, with oil resistance to prevent general oil pollution corrosion. 8. After long-term market testing, the technology is mature and reliable, with a long service life. 9. The internal design damping mechanism can effectively avoid resonance phenomenon. 10 natural frequencies of 3Hz~5Hz. Comply with JISD-4101 air cushion withstand voltage test standard 11. Simple installation, strong universality, suitable for vibration reduction and prevention of most equipment. Product Usage: Used for vibration reduction of stamping equipment such as punches, cutting machines, die-cutting machines, presses, cutting machines, hydraulic presses, etc; Used for vibration reduction of industrial machinery such as textile machines, embroidery machines, sewing machines, embroidery machines, vacuum machines, forming machines, cupping machines, CNC machine tools, etc; It is used for vibration reduction of precision instruments such as three coordinate detector, length meter, anime detector and roundness meter; Used for vibration reduction of equipment with large self vibration and isolation and vibration prevention of equipment susceptible to vibration interference;

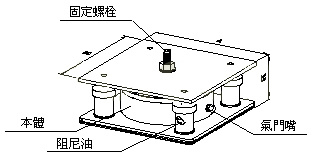

B air cushion shock absorber   Product Features   Pneumatic anti vibration device, designed with oil pressure damping cylinder. Suitable for eliminating impact and vibration, dedicated to the highest speed punching machine. Designed with low natural frequency values, it has excellent anti vibration effect. Using Neoprene Rubber material for good weather resistance and long service life The anti oil cap design has oil resistance and can prevent general oil pollution corrosion. The internal design damping mechanism can effectively avoid resonance phenomena. Natural frequency: 3Hz~5Hz, damping coefficient: 0.12~0.13. Comply with JISD-4101 air cushion pressure test standard.

Main purpose     Punching machines, reciprocating air compressors, hydraulic cutting machines, shearing machines, washing machines.

Product Load/Dimension Table

Model Measurement(mm) Weight (Kgs) Natural frequency (Hz) Fixed bolt CS*L A B H Min Max MY-700-SB 260 260 120 400 700 3~5 M12-105L MY-900-SB 270 270 120 700 900 3~5 M16-110L MY-1200-SB 300 300 120 900 1200 3~5 M16-110L MY-1600-SB 350 350 120 1200 1600 3~5 M16-110L MY-2000-SB 400 400 120 1600 2000 3~5 M16-110L MY-2800-SB 450 450 120 2000 2800 3~5 M20-150L MY-3500-SB 500 500 120 800 3500 3~5 M20-150L MY-6000-SB 575 575 120 3500 6000 3~5 M24-150L MY-9000-SB 650 650 120 6000 9000 3~5 M24-150L
