SE type air cushion shock absorber

characteristic:
The air cushion uses air to prevent vibration, which can effectively eliminate vibration and has high anti vibration efficiency.
Equipped with a mechanical height adjustment valve, it can automatically adjust the level when the load changes, with an accuracy of 40.02.
Easy to install and can match the quantity according to the weight of the equipment.
The emergency relief valve design can protect the lifespan of the rubber film when the load changes.

Main purpose:

■ Used for vibration reduction of stamping equipment such as punches, cutting machines, die-cutting machines, presses, cutting machines, hydraulic presses, etc; Used for vibration reduction of industrial machinery such as textile machines, embroidery machines, needle punching machines, quilting machines, embroidery machines, vacuum machines, forming machines, cupping machines, CNC machine tool vibration discs, etc;

■ It is used for vibration reduction of precision instruments such as three coordinate detector, length measuring instrument, anime detector and roundness measuring instrument; Used for vibration reduction of equipment with large self vibration and isolation and vibration prevention of equipment susceptible to vibration interference;

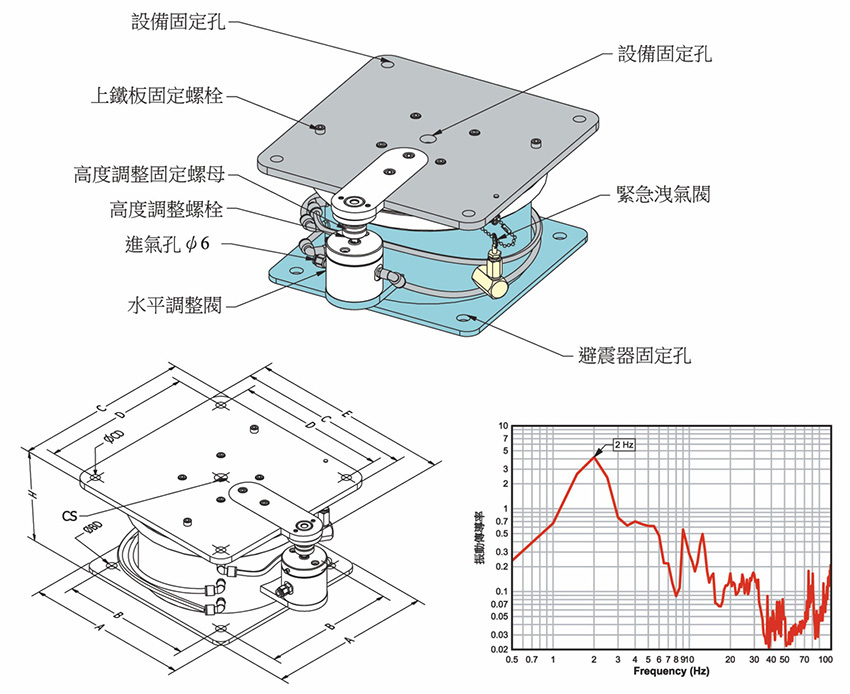

Product load/size table:

Model	Measurement(mm)									Load capacity Kgs
Model		B	C	D	E	H	CS	ΦCD	ΦBD	Load capacity Kgs
MY.200-SE	140	115	160	135	202	147	M10	9	11	100~220
MY.400-SE	160	125	190	150	237	147	M12	12	12	200-480
MY-700-SE	200	160	220	180	267	147	M12	12	12	400--720
MY-1200-SE	250	200	270	230	318	147	M16	14	14	900~1250
MY-2000-SE	350	300	380	340	425	147	M16	14	14	1200-2500
