B型气垫减震器
用于冲床，裁断机，模切机，压力机，下料机，油压机等冲击设备减震; 用于纺织机刺绣机,刺绣机针刺机，衔缝机，绣花机，吸塑机，成形机，打杯机，CNC机床等产业机械减振; 用于三座标检测仪，测长仪，二次元检测仪，测圆仪等精密仪器减振; 用于自振较大设备的减振及易受振动干扰的设备隔振防振;
key word:
Category:
Air cushion shock absorber
TEL:
B型气垫减震器
特性:
1.气压式防振装置，配合油压阻尼简设计，
2.有效抑制设备振幅过大，保证设备稳定
3.适用于冲击振动之消除，低自然频率值设计，防振效果佳。
4.使用Neoprene Rubber材质，耐候性佳使用寿命长，
5.采用机器人焊接气垫壳体，橡胶与壳体一体成形，
6.气密性好，避免经常充气维护，使用更省心。
7.防油帽设计，具抗油性可防止一般油污腐蚀，
8.经过长时间的市场检验，技术成熟可靠，使用寿命长
9.内部设计阻尼机构可有效避免共振现象。
10自然频率3Hz^ "5Hz. 符合JISD-4101气垫耐压测试标准.11.安装简单，通用性强，适应于大多数设备的减振防振。
主要用途:
■ 用于冲床，裁断机，模切机，压力机，下料机，油压机等冲击设备减震;
■ 用于纺织机刺绣机,刺绣机针刺机，衔缝机，绣花机，吸塑机，成形机，打杯机，CNC机床等产业机械减振;
■ 用于三座标检测仪，测长仪，二次元检测仪，测圆仪等精密仪器减振;
■ 用于自振较大设备的减振及易受振动干扰的设备隔振防振;

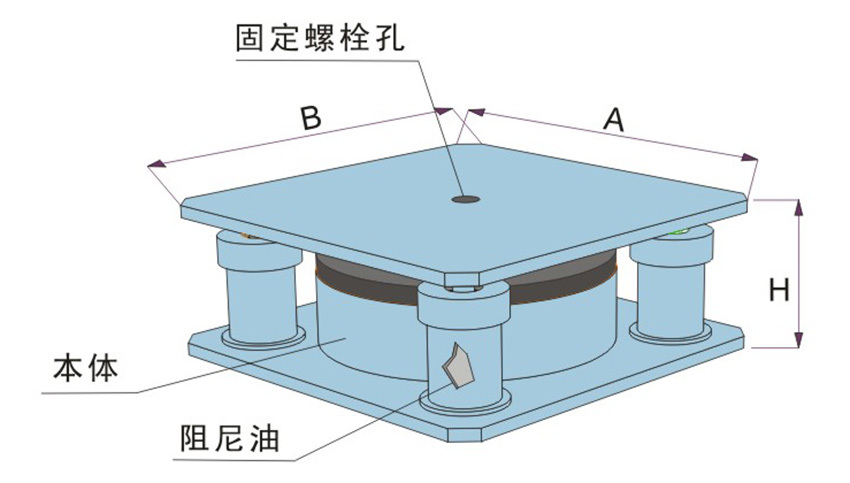

产品荷重/尺寸表：
| 型号 | 尺 寸(mm) | 荷重 (Kgs) | 自然频率 (Hz) |
固定螺栓 CS*L |
|||
| A | B | H | Min | Max | |||
| MY-400-B | 200 | 200 | 110 | 200 | 400 | 3~5 | M12-80L |
| MY-900-B | 270 | 270 | 110 | 500 | 900 | 3~5 | M16-130L |
| MY-1200-B | 300 | 300 | 110 | 700 | 1200 | 3~5 | M16-130L |
| MY-1600-B | 350 | 350 | 110 | 1200 | 1600 | 3~5 | M16-130L |
| MY-2000-B | 400 | 400 | 110 | 1600 | 2000 | 3~5 | M16-130L |
| MY-3500-B | 500 | 500 | 110 | 2000 | 3500 | 3~5 | M16-130L |
